Locking Actuator 600N

Lock the window after close window automatically .work with window actuator together .Designed and produced according to WP Standard.

Product Description
WP-DS Locking Actuator 600N

Technical Features

The locking actuator is a motorized locking device used on inward opening top-, bottom- and side-hung window, serving as an additional lock via the fittings in combination with Windpane chain motors on the same window.
especially for the combination with Windpane chain motors Optionally up to max. 600 N or max. 1000 N push force Integrated power cut off and Windpane electronic installation on the casement or concealed in the profile Actuator can be inserted on the left or right as required.
The locking direction can be set via a switch on the integrated board actuation of drive rod fittings.
Automatic load-dependent switch-off when end position is reached Housing made from corrosion restistant, drawn aluminium.

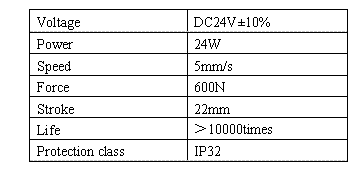

Technical Data

The screw is made of high quality steel, Strong thrusting,stable running.
Designed life:more than 10000 times push-pull Cycle. ┬ĚProtection class:IP32.
The stroke can be customized according to Customer requirements.
